Triblocks

TRIBLOCK


TYPE PRIMA 12/1s + 1v-c PRIMA 16/1s + 1v-c
Output 800-2.500 800-3.000
Power Kw 1,1 Kw 1,1
Weight Kg 1.700 Kg 1.900

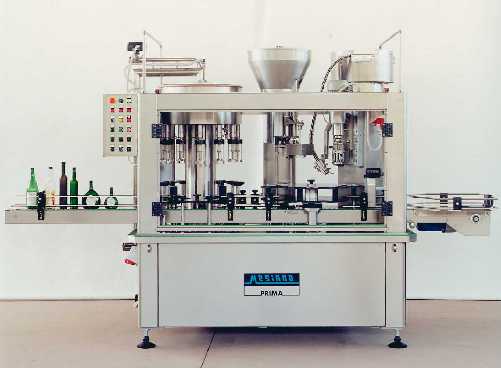

The Triblock consists of a filler and two corkers mounted on a single frame. The machine is built following the most advanced technology. The movement is obtained through a single motor and only one starwheel for both corkers.


QUADRIBLOCK


TYPE PRIMA SC 9-R12-1S + 1V PRIMA SC 12-R12-1S + 1V PRIMA SC 16-R16-1S + 1V
Output 800-2.000 800-2.500 800-3.000
Power Kw 1,1 Kw 1,1 Kw 1,1
Weight Kg 1.900 Kg 2.000 Kg 2.200

The quadriblock consists of a rinsing machine, a filler, and two corkers on a single chassis and is built with start of the art technology.
The movement is obtained through a single motor and a single starwheel for both corkers



QUADRIBLOCK WITH LOW DEPRESSION OR GRAVITY SYSTEM


TYPE PRIMA 12/1s + 1c PRIMA 16/1s + 1c
Output 800-2.500 800-3.000
Power Kw 1,1 Kw 1,1
Weight Kg 1.700 Kg 1.900

Filler and two single-head corkers that cab be for cork/screw caps or other closures on demand; throughput from 800 bph to 3,000 bph.
